Arm Barrier with Counterweight and Swing Post – Hot-Dip Galvanized

Schake SKU: 411_31VPB

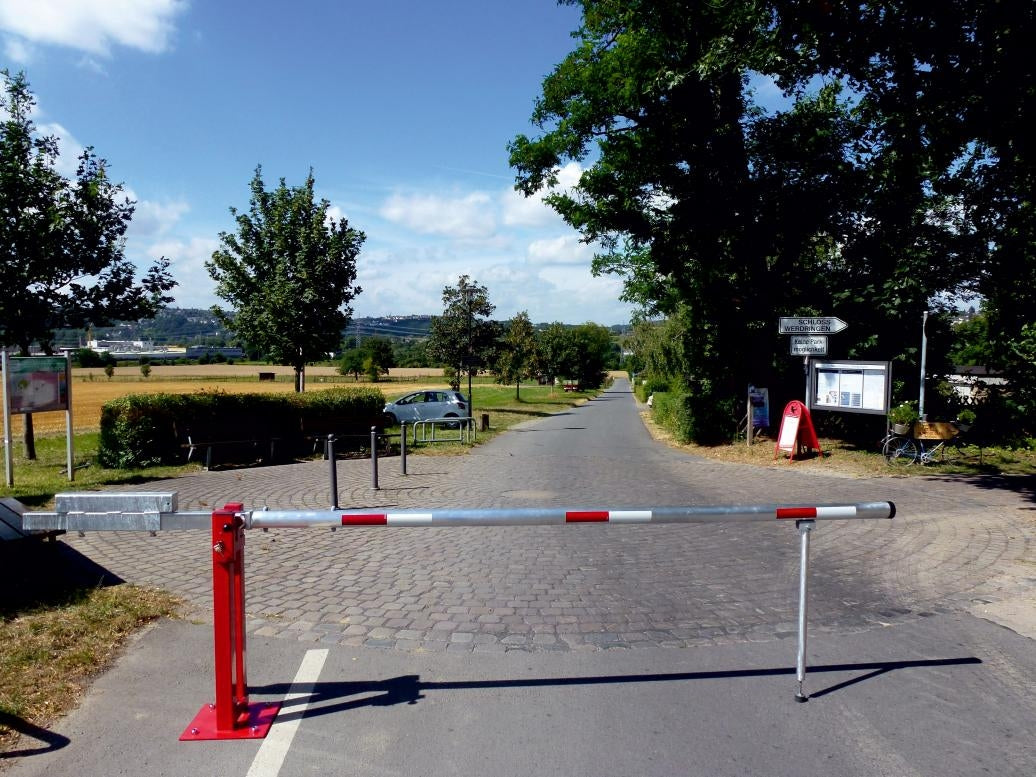

Access barrier with counterweight and swing post

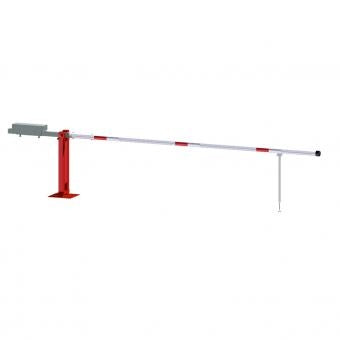

Access barrier with counterweight and swing post

Estimated Shipping Widget will be displayed here!

  • Fixed by plugsMounting type
  • 950 mmBarrier height
  • Steel, AluminumMaterial
  • 15 variantsClear Width (5) · Locking System (3)
  • SKU 411_31VPB

This access barrier with counterweight and swing post offers a durable and practical solution for controlling vehicle access, securing traffic zones, and organizing pedestrian flow. Engineered for smooth operation, the barrier arm is supported by a robust counterweight system that ensures easy lifting and precise balance.

The main support structure is made from hot-dip galvanized steel, providing exceptional resistance to corrosion and long-term outdoor durability. A strong steel base plate with anchoring points ensures stable installation, while the thick-walled aluminium barrier arm delivers high strength with minimal weight. Reflective white/red markings enhance visibility in all lighting conditions.

A locking pin mechanism allows the arm to be securely fixed in the open or closed position, with compatibility for padlock, triangular lock (DIN 3223), or Euro profile cylinder lock.

Construction

  • Main support:

    • Steel square tube 70 × 70 mm

    • Ground plate 360 × 360 × 8 mm with 4 × Ø 20 mm anchoring holes

    • Hot-dip galvanized and powder-coated red

  • Barrier arm:

    • Thick-walled aluminium tube Ø 80 mm

    • Equipped with counterweight

    • Uncoated with white/red reflective stripes

  • Swing post:

    • Aluminium tube with foot

  • Height: Approx. 950 mm above ground

  • Total width: Clear width + approx. 900 mm

Operation

  • Smooth horizontal swing action

  • Locking mechanism at main support with locking pin

  • Secures arm in open or closed position

  • Compatible with:

    • Padlock

    • Triangular lock (DIN 3223)

    • Euro profile cylinder lock

Available Clear Widths

  • 3000 mm

  • 4000 mm

  • 5000 mm

  • 6000 mm

  • 7000 mm

Available Lock Options

  • For padlock

  • With triangular lock

  • With Euro profile cylinder lock

Datasheet

PDF · for 3000 mm / For Padlock

Download PDF
MaterialSteel, Aluminum
Barrier height950 mm
Barrier materialAluminium
Mounting typeFixed by plugs
Base materialSteel
FinishHot-dip galvanized and powder-coated red
Post materialSteel
ReflectiveWhite/red reflective stripes
Weight65.48 kg, 67.27 kg, 67.14 kg, 89.77 kg, 91.56 kg, 91.44 kg, 114.1 kg, 115.89 kg, 115.76 kg, 116.84 kg, 118.63 kg, 118.5 kg, 139.97 kg, 141.76 kg, 141.63 kg
Clear Width3000 mm, 4000 mm, 5000 mm, 6000 mm, 7000 mm
Locking SystemFor Padlock, Triangular locking mechanism, Euro profile cylinder lock

Variants

Variant - Clear Width / Locking System Stock Quantity Price Total
Arm Barrier with Counterweight and Swing Post – Hot-Dip Galvanized
3000 mm / For Padlock 411_31VPB
£969.00 exc. VAT
Backorder
£969.00 exc. VAT
£0.00
Arm Barrier with Counterweight and Swing Post – Hot-Dip Galvanized
3000 mm / Triangular locking mechanism 411_31FPB
£1,109.00 exc. VAT
Backorder
£1,109.00 exc. VAT
£0.00
Arm Barrier with Counterweight and Swing Post – Hot-Dip Galvanized
3000 mm / Euro profile cylinder lock 411_31ZPB
£1,131.00 exc. VAT
Backorder
£1,131.00 exc. VAT
£0.00
Arm Barrier with Counterweight and Swing Post – Hot-Dip Galvanized
4000 mm / For Padlock 411_41VPB
£1,025.00 exc. VAT
Backorder
£1,025.00 exc. VAT
£0.00
Arm Barrier with Counterweight and Swing Post – Hot-Dip Galvanized
4000 mm / Triangular locking mechanism 411_41FPB
£1,164.00 exc. VAT
Backorder
£1,164.00 exc. VAT
£0.00
Arm Barrier with Counterweight and Swing Post – Hot-Dip Galvanized
4000 mm / Euro profile cylinder lock 411_41ZPB
£1,187.00 exc. VAT
Backorder
£1,187.00 exc. VAT
£0.00
Arm Barrier with Counterweight and Swing Post – Hot-Dip Galvanized
5000 mm / For Padlock 411_51VPB
£1,081.00 exc. VAT
Backorder
£1,081.00 exc. VAT
£0.00
Arm Barrier with Counterweight and Swing Post – Hot-Dip Galvanized
5000 mm / Triangular locking mechanism 411_51FPB
£1,220.00 exc. VAT
Backorder
£1,220.00 exc. VAT
£0.00
Arm Barrier with Counterweight and Swing Post – Hot-Dip Galvanized
5000 mm / Euro profile cylinder lock 411_51ZPB
£1,242.00 exc. VAT
Backorder
£1,242.00 exc. VAT
£0.00
Arm Barrier with Counterweight and Swing Post – Hot-Dip Galvanized
6000 mm / For Padlock 411_61VPB
£1,148.00 exc. VAT
Backorder
£1,148.00 exc. VAT
£0.00
Arm Barrier with Counterweight and Swing Post – Hot-Dip Galvanized
6000 mm / Triangular locking mechanism 411_61FPB
£1,287.00 exc. VAT
Backorder
£1,287.00 exc. VAT
£0.00
Arm Barrier with Counterweight and Swing Post – Hot-Dip Galvanized
6000 mm / Euro profile cylinder lock 411_61ZPB
£1,309.00 exc. VAT
Backorder
£1,309.00 exc. VAT
£0.00
Arm Barrier with Counterweight and Swing Post – Hot-Dip Galvanized
7000 mm / For Padlock 411_71VPB
£1,226.00 exc. VAT
Backorder
£1,226.00 exc. VAT
£0.00
Arm Barrier with Counterweight and Swing Post – Hot-Dip Galvanized
7000 mm / Triangular locking mechanism 411_71FPB
£1,365.00 exc. VAT
Backorder
£1,365.00 exc. VAT
£0.00
Arm Barrier with Counterweight and Swing Post – Hot-Dip Galvanized
7000 mm / Euro profile cylinder lock 411_71ZPB
£1,387.00 exc. VAT
Backorder
£1,387.00 exc. VAT
£0.00
