Impact Protection Railing System- BLACK BULL MD - for plugging down 70x70mm (modular)
Estimated Shipping Widget will be displayed here!
- SKU 194.24.261

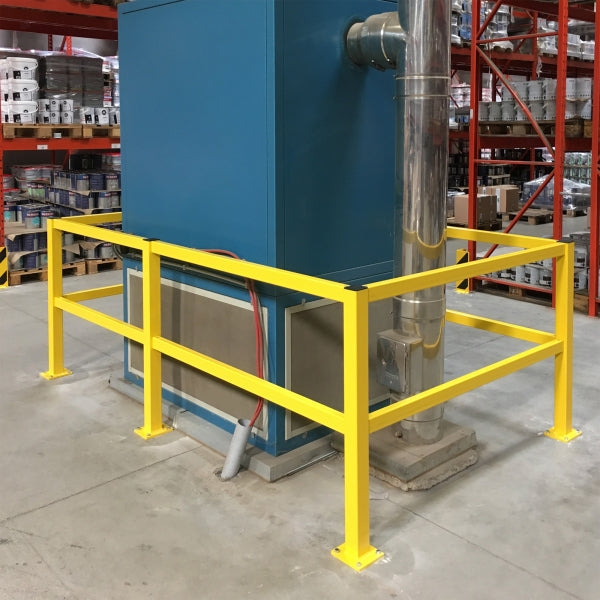

The BLACK BULL MD Impact Protection Railing System is a modular medium-duty safety barrier designed to protect machinery, equipment, and pedestrian walkways from vehicle impact in industrial environments.

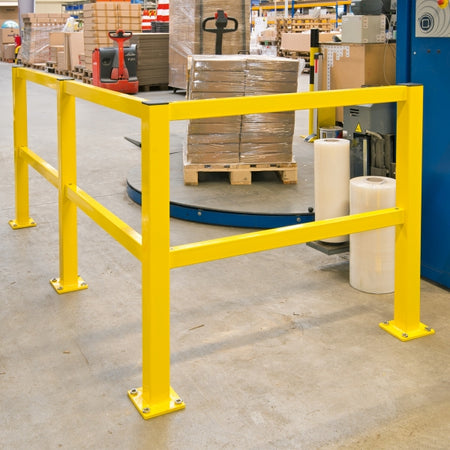

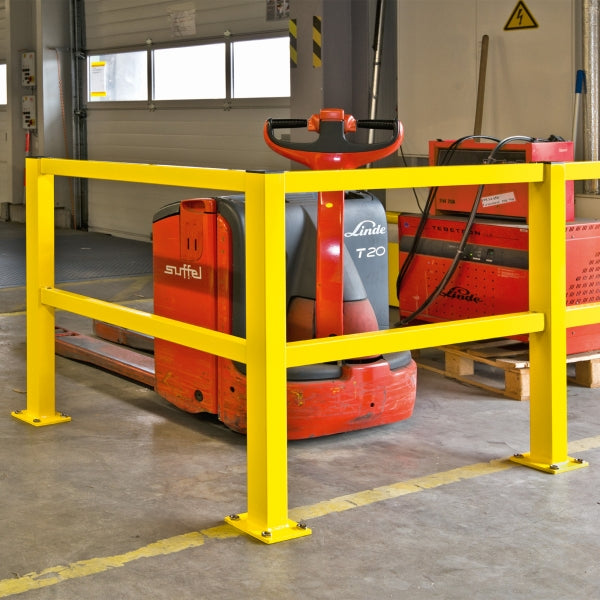

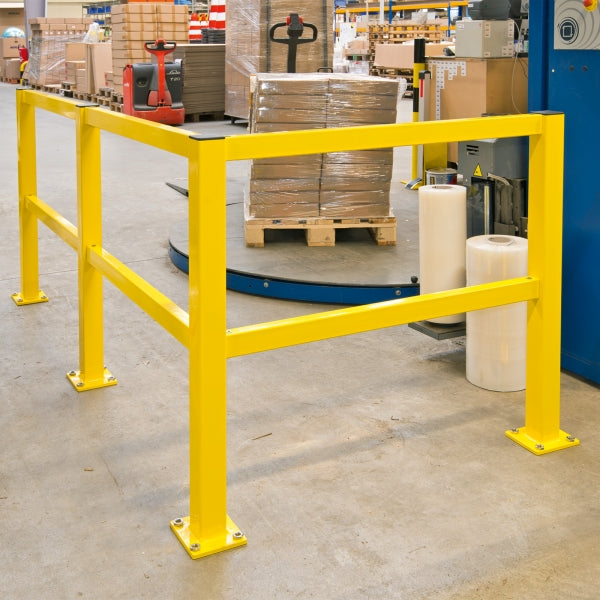

This highly visible yellow railing system creates clear separation between forklift traffic and pedestrian areas, helping to reduce accidents and improve workplace safety in warehouses, manufacturing plants, distribution centres and vehicle yards.
The system consists of posts, lateral rails and accessories, allowing flexible configurations that can easily be extended or adapted as your facility evolves.
Key Features
-
Highly visible industrial safety barrier system
-
Medium duty impact protection
-
Modular design for easy installation and expansion
-
Rails securely fixed to posts with counter-sunk bolts
-
Damaged sections can be replaced individually
-
Suitable for indoor and outdoor installations
-
TÜV tested according to DGUV 108-007
Typical Applications
The BLACK BULL railing system is commonly used in:
-
Warehouses
-
Manufacturing facilities
-
Logistics centres
-
Distribution depots
-
Car parks
-
Vehicle yards
-
Industrial walkways
-
Loading areas
It provides effective protection where heavy duty crash barriers are not required, but reliable protection against forklifts and vehicles is essential.
System Components
The system consists of several interchangeable components:
Posts
-
End posts
-
Centre posts
-
Corner posts (90°)
Rails
-
1000 mm
-
1200 mm
-
1500 mm
-
2000 mm
Accessories
-
Wall mounting plate
-
Anchor bolts

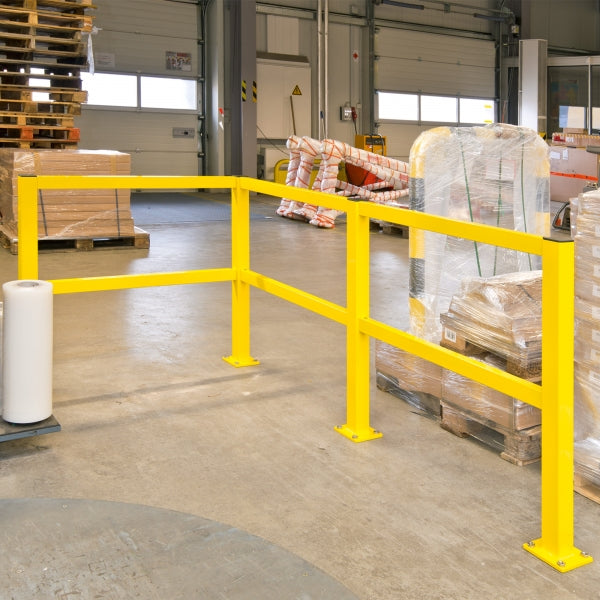

This modular structure allows the railing system to be installed in straight lines, corners or custom layouts.
Technical Specifications
Posts
-
Section: 70 × 70 mm
-
Height: 1000 mm
-
Base plate: 160 × 140 × 10 mm
-
Fixing holes: 4
Rails
-
Profile: 60 × 40 × 3 mm
-
Length options: 1000 / 1200 / 1500 / 2000 mm
Finish Options
Indoor Use
Powder coated safety yellow
Outdoor Use
Hot-dip galvanised + powder coated yellow for additional corrosion protection
Installation
The railing system is designed for fast and straightforward installation.
Rails are secured to the posts using countersunk bolts, and the base plates are fixed to the floor using anchor bolts.
Installation instructions are available on request.
Variants
| Variant - Component / Finish | Stock | Quantity | Price | Total |
|---|---|---|---|---|
End Post / Powder Coated Yellow (Indoor)
194.24.261
|
|
|||
|
End Post / HDG + Powder Coated Yellow (Outdoor)
194.25.033
|
|
|||
Middle Post / Powder Coated Yellow (Indoor)
194.29.943
|
|
|||
|
Middle Post / HDG + Powder Coated Yellow (Outdoor)
194.20.894
|
|
|||
Corner Post 90° / Powder Coated Yellow (Indoor)
194.29.694
|
|
|||
|
Corner Post 90° / HDG + Powder Coated Yellow (Outdoor)
194.21.831
|
|
|||
Rails (1000 mm) / Powder Coated Yellow (Indoor)
194.21.266
|
|
|||
|
Rails (1000 mm) / HDG + Powder Coated Yellow (Outdoor)
194.29.126
|
|
|||
|
Rails (12000 mm) / Powder Coated Yellow (Indoor)
194.27.076
|
|
|||
|
Rails (12000 mm) / HDG + Powder Coated Yellow (Outdoor)
194.27.265
|
|
|||
|
Rails (1500 mm) / Powder Coated Yellow (Indoor)
194.25.352
|
|
|||
|
Rails (1500 mm) / HDG + Powder Coated Yellow (Outdoor)
194.27.828
|
|
|||
|
Rails (2000 mm) / Powder Coated Yellow (Indoor)
194.25.650
|
|
|||
|
Rails (2000 mm) / HDG + Powder Coated Yellow (Outdoor)
194.29.847
|
|
