Manual Arm Barrier with Pneumatic Spring and Fixed Pole Support
Estimated Shipping Widget will be displayed here!
- SKU 415_30VPB

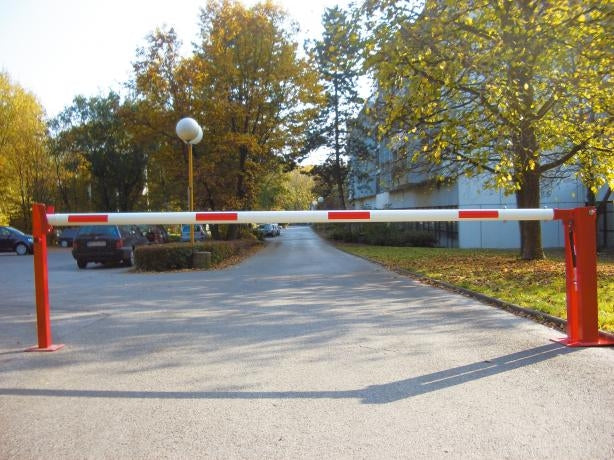

This manual access barrier is designed for reliable, user-friendly control of vehicle access points in industrial, commercial, and municipal environments. Equipped with a pneumatic spring, the barrier arm lifts and lowers smoothly with minimal effort, making operation safe and comfortable even with longer arm lengths.

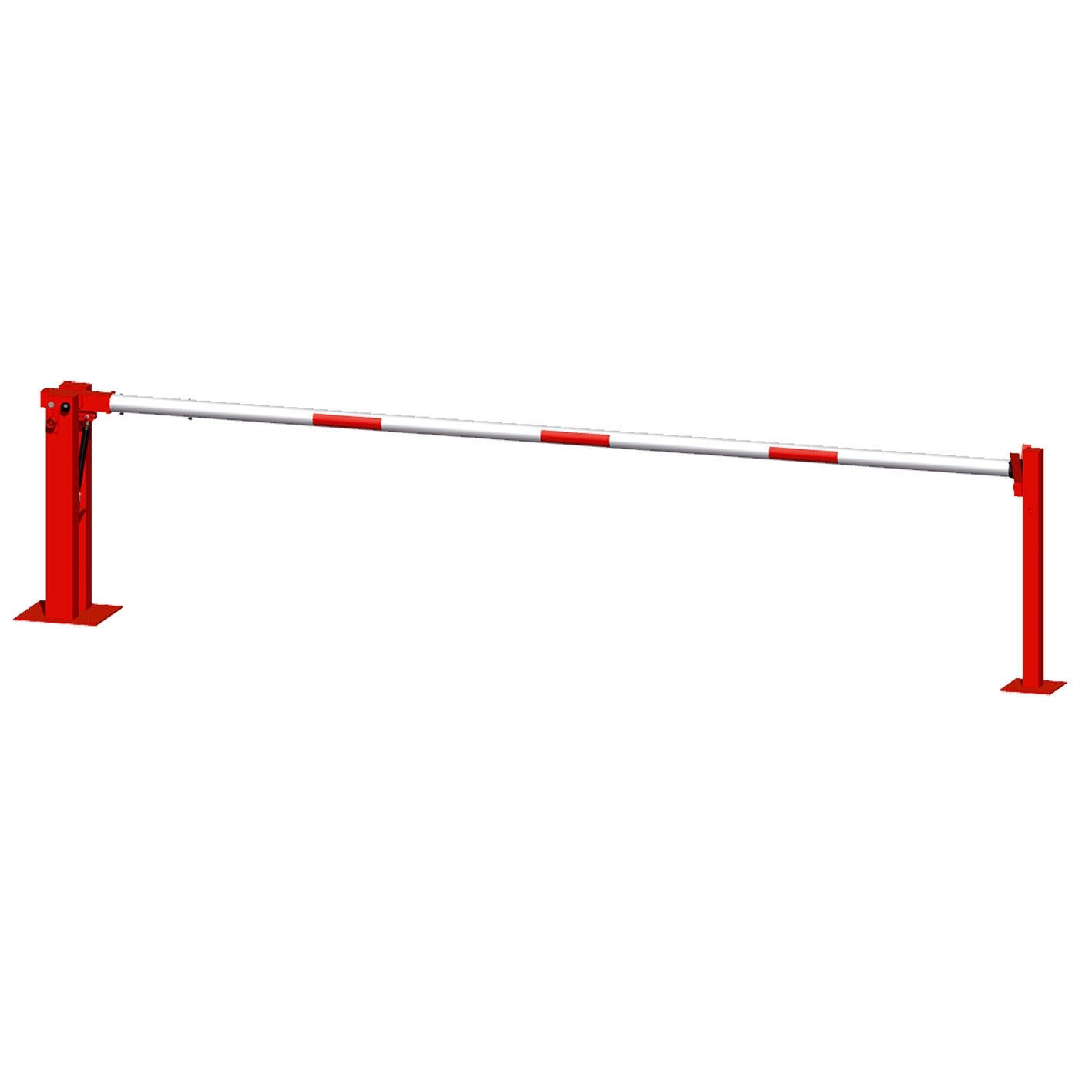

The barrier features a robust steel main support with a large, hot-dip galvanized base plate for secure anchoring. A matching fixed supporting post ensures stable positioning when the barrier is closed. The thick-walled aluminium barrier arm is powder-coated and fitted with red reflective stripes for excellent visibility in all weather and lighting conditions.
The barrier arm can be locked in both the open and closed position, with multiple locking configurations available, including padlock, triangular lock, and Euro profile cylinder solutions.
Construction
-
Main support:
-
Steel square tube 120 × 80 mm
-
Base plate 360 × 360 × 8 mm with 4 × Ø 20 mm anchor holes
-
Hot-dip galvanized and powder-coated red
-
Arm can be fixed in open and closed positions
-
-
Supporting post:
-
Steel tube 70 × 70 mm
-
Base plate 220 × 220 × 8 mm with 4 × Ø 20 mm anchor holes
-
-
Barrier arm:
-
Thick-walled aluminium tube Ø 80 mm
-
Powder-coated with red reflective stripes
-
-
Height: Approx. 950 mm above ground
-
Total width: Clear width + approx. 180 mm
Operation
-
Manual opening and closing with pneumatic spring assistance
-
Locking mechanism located at the supporting post
-
Compatible with multiple lock types:
-
Padlock
-
Double profile cylinder lock on main support
-
Triangular lock
-
Triangular lock + Euro profile cylinder lock at main support
-
Euro profile cylinder lock
-
Download product documents (PDF)
Variants
| Variant - Clear Width / Locking System | Stock | Quantity | Price | Total |
|---|---|---|---|---|
3000 mm / For Padlock
415_30VPB
|
|
|||
|
3000 mm / Triangular locking mechanism
|
|
|||
|
3000 mm / Euro profile cylinder lock
|
|
|||
|
3000 mm / Double profile cylinder lock on the main support
|
|
|||
|
3000 mm / Triangular lock and Euro profile cylinder lock at the main support
|
|
|||
|
4000 mm / For Padlock
415_40VPB
|
|
|||
|
4000 mm / Triangular locking mechanism
|
|
|||
|
4000 mm / Euro profile cylinder lock
|
|
|||
|
4000 mm / Double profile cylinder lock on the main support
|
|
|||
|
4000 mm / Triangular lock and Euro profile cylinder lock at the main support
|
|
|||
|
5000 mm / For Padlock
415_50VPB
|
|
|||
|
5000 mm / Triangular locking mechanism
|
|
|||
|
5000 mm / Euro profile cylinder lock
|
|
|||
|
5000 mm / Double profile cylinder lock on the main support
415_50ZZPB
|
|
|||
|
5000 mm / Triangular lock and Euro profile cylinder lock at the main support
|
|
|||
|
6000 mm / For Padlock
415_60VPB
|
|
|||
|
6000 mm / Triangular locking mechanism
|
|
|||
|
6000 mm / Euro profile cylinder lock
|
|
|||
|
6000 mm / Double profile cylinder lock on the main support
415_60ZZPB
|
|
|||
|
6000 mm / Triangular lock and Euro profile cylinder lock at the main support
|
|
|||
|
7000 mm / For Padlock
415_70VPB
|
|
|||
|
7000 mm / Triangular locking mechanism
|
|
|||
|
7000 mm / Euro profile cylinder lock
|
|
|||
|
7000 mm / Double profile cylinder lock on the main support
|
|
|||
|
7000 mm / Triangular lock and Euro profile cylinder lock at the main support
|
|
