Quartet Speed Cushion – Heavy-Duty Traffic Calming System

Professional Road Safety Solution for Controlled Speed Reduction

The Quartet Speed Cushion is a certified traffic calming element designed for situations where physical vehicle speed reduction is required. Engineered for urban environments, it improves road safety while allowing smooth passage for emergency vehicles and buses.

Manufactured in Europe from high-performance vulcanised rubber, this system is built for long-term durability under heavy traffic conditions.

Key Features

✔ Purpose-Built Traffic Calming

Designed to physically reduce vehicle speed in high-risk areas such as residential roads, school zones and urban streets.

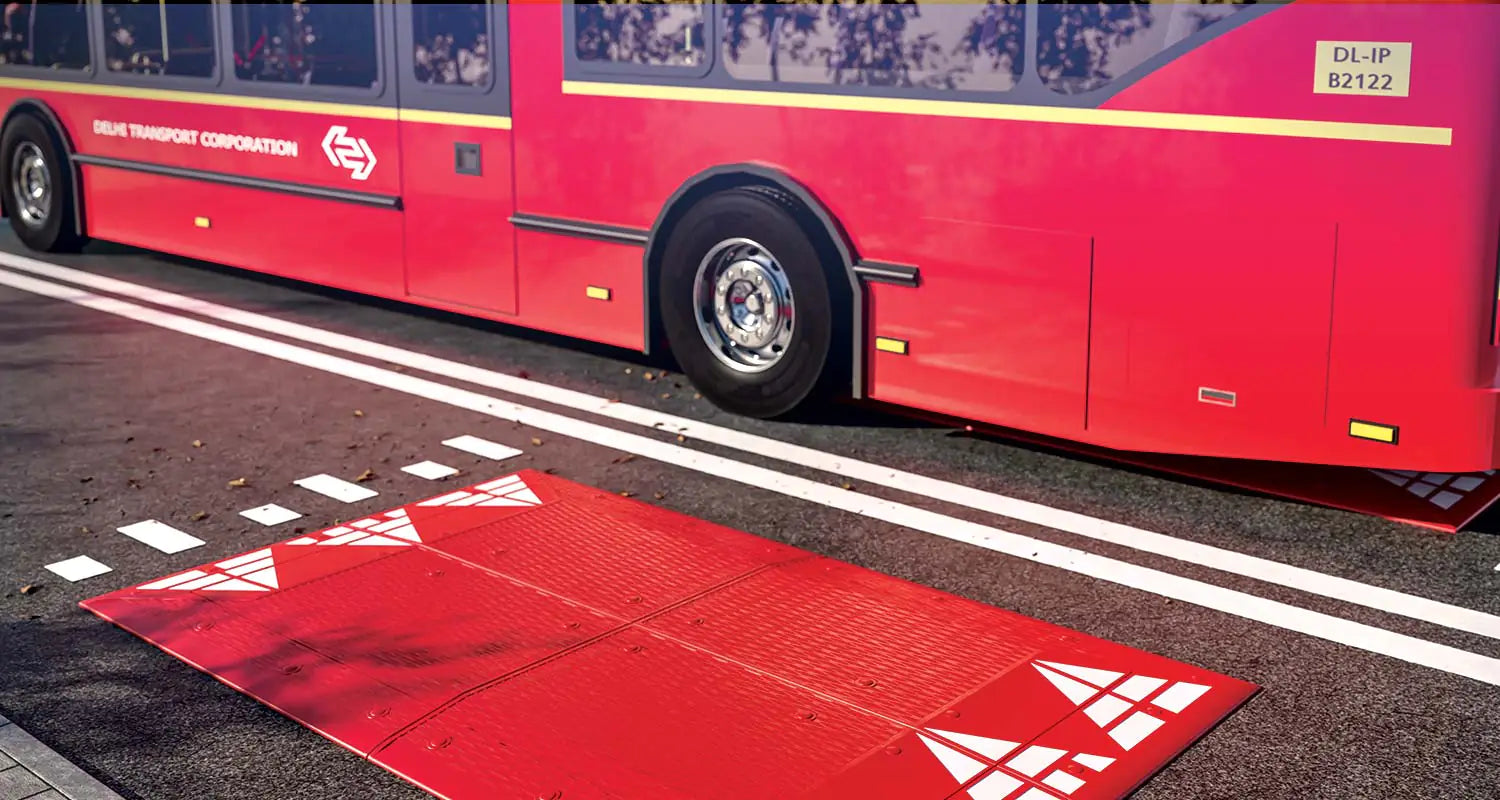

✔ Emergency Vehicle Friendly Design

The cushion width (1800 mm) allows wider-axle vehicles such as buses and emergency vehicles to pass without obstruction while slowing standard passenger cars.

✔ Industrial-Grade Vulcanised Rubber

• Tensile strength ≥ 4.0 MPa (PN-ISO 37)

• Hardness ≥ 60° ShA (PN-EN ISO 868:2005)

• Water absorption ≤ 2 % (PN-EN ISO 62)

Ensures long service life and resistance to deformation.

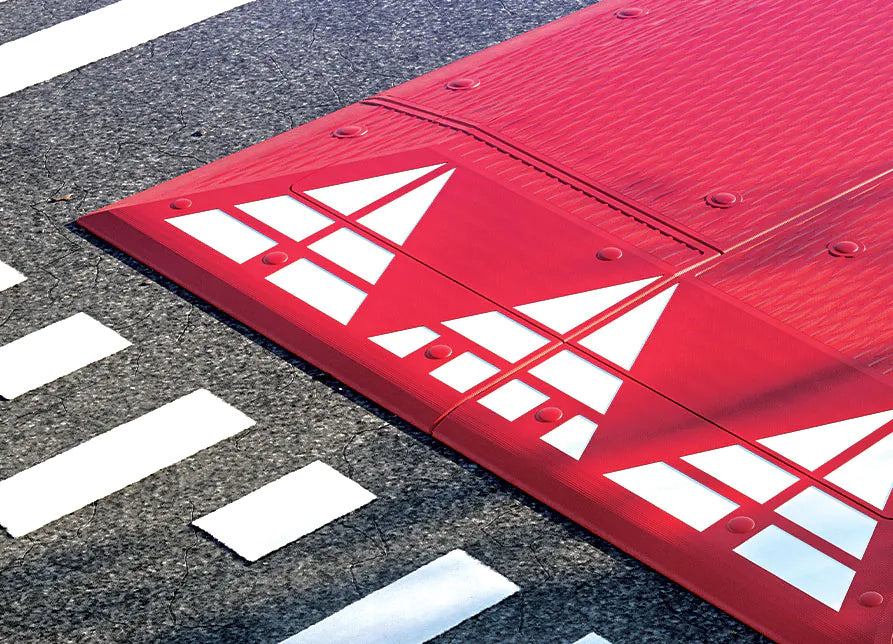

✔ High Visibility 3M Reflective Tape

Equipped with durable white or yellow 3M reflective tape applied to the front and rear overrun areas for optimal day and night visibility.

✔ Two Size Options

Available in two rectangular versions:

• 3000 × 1800 × 65 mm

• 2000 × 1800 × 65 mm

Height: 65 mm
Colours: Red or Black with 3M reflective marking

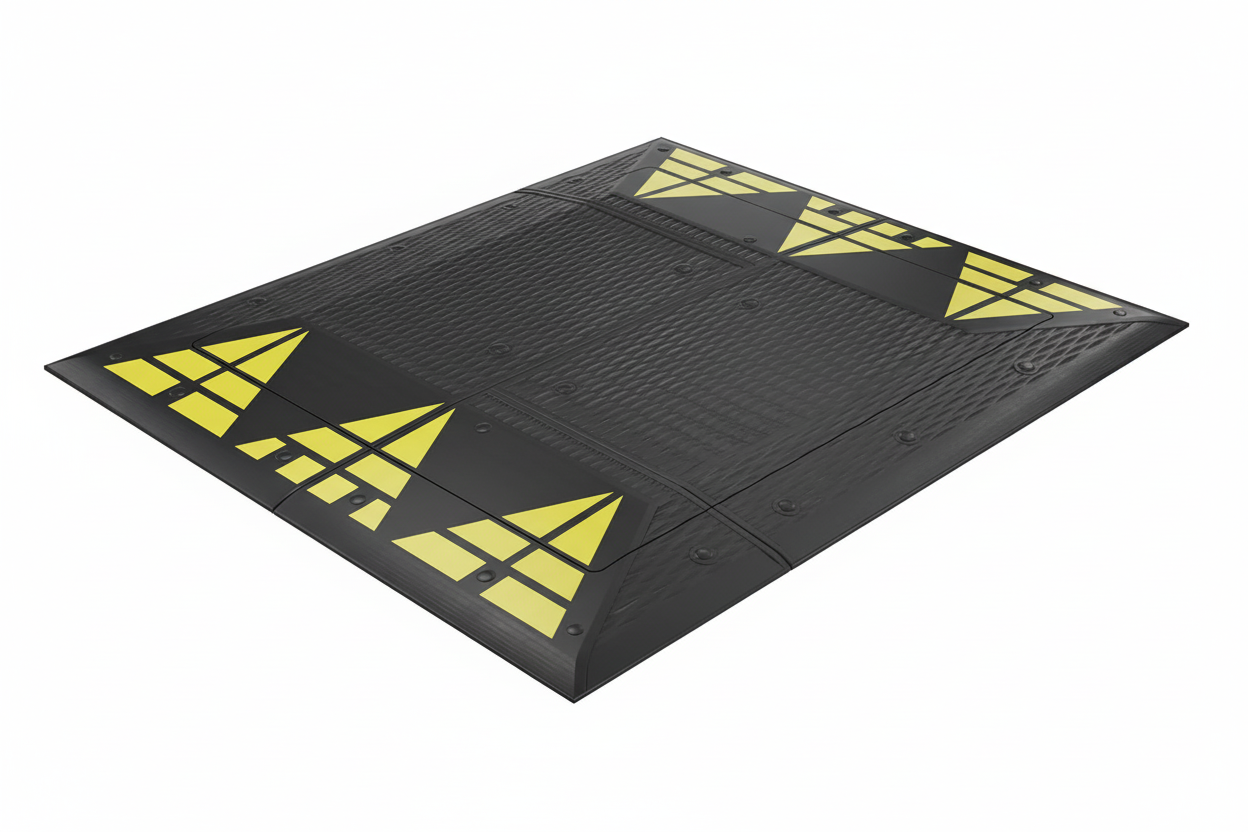

✔ Complete 4-Piece Modular Set

Supplied as one complete set (4 pieces per pallet).
Installation using fixing kit with dowels, screws, washers and protective caps (sold separately if required).

Applications

• School zones

• Residential streets

• Urban traffic calming areas

• Commercial parking facilities

• Public roads & transit routes

Technical & Handling Information

Weight per set:

• 280 kg (3000 mm version)

• 200 kg (2000 mm version)

Tolerance:

• Length / width ±2 %

• Height ±4 %

• Weight ±2 %

Packaging:
Delivered on wooden pallet (4 pcs / 1 complete set).
Each pallet labelled with product name, batch number and packing date.

Storage:
Store on pallets, protected from weather conditions.
For long-term storage, keep in dry, ventilated indoor space.
Maximum storage temperature: 40°C.

Upgrade Road Safety with a Certified Heavy-Duty Speed Cushion System

The Quartet Speed Cushion offers a reliable, high-visibility and durable solution for professional traffic calming projects where performance, compliance and longevity are essential.
